PARTRONIC LiYCY, LiYCYo, LiYCY-Nr 300/300 V

PARTRONIC LiYCY, LiYCYo, LiYCY-Nr 300/300 V

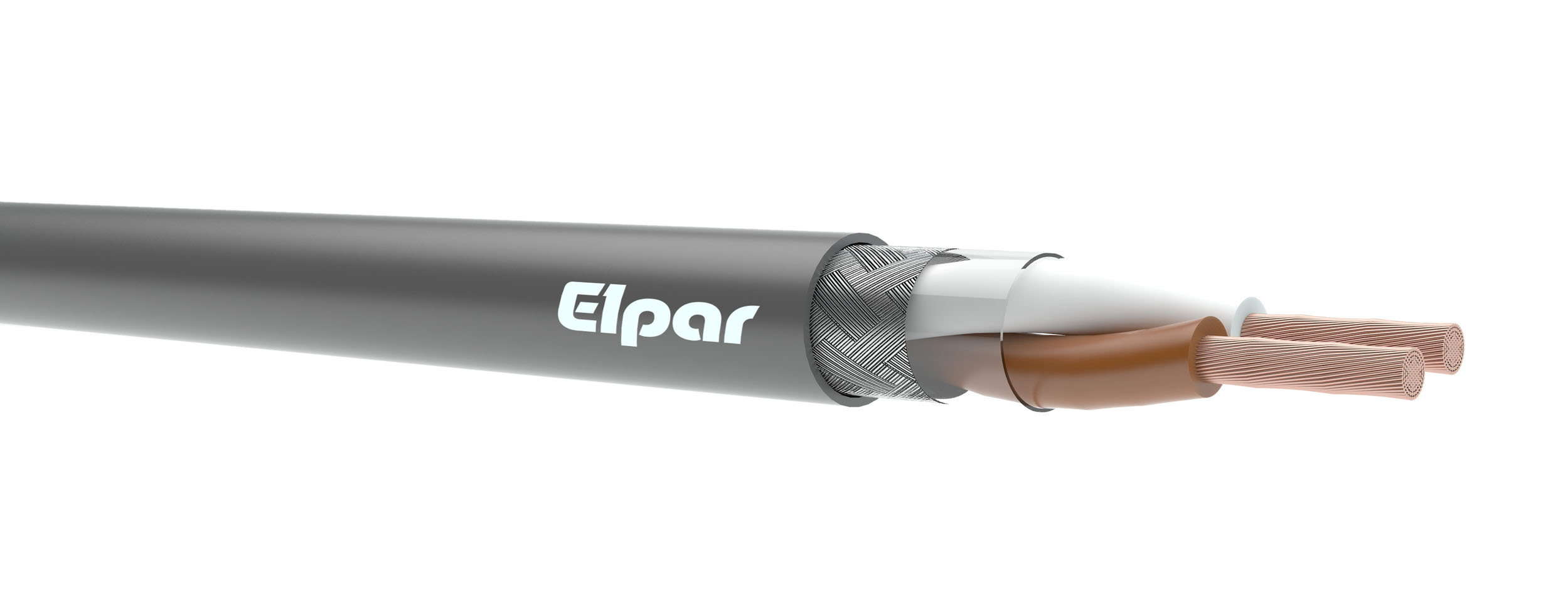

Control cable with copper multi-wire conductors (Li) in softened PVC insulation (Y) and softened PVC sheath (Y), with common shield on central core in the form of a braid of copper zinc-coated wires (C).

CONSTRUCTION:

Conductors

copper, multi-wire, class 5 as per PN-EN 60228

Insulation

special softened PVC

Insulation colours

from 1 to 10 colours as per DIN 47100, from 11 to 61 cores – bi-colour conductors, second colour is a longitudinal strip or, in case of PARTRONIC LiYY-Nr cables – black conductors marked with numbers

Center

stranded into a central core wrapped in a polyester tape

Shield

braid of copper zinc-coated wires

Sheath

PARTRONIC LiYCY – special softened PVC, grey

PARTRONIC LiYCYo – oil resistant, as per PN-EN 60811-404:2012, grey

Operating temperature

for fixed systems: -30°C to +70°C

for mobile systems: -5°C to +70°C

Nominal voltage

300/300 V

Bend radius

min. bend radius for flexible connections 10 x cable diameter

min. bend radius for fixed installations 5 x cable diametera

Application



cables intended to transmit data via digital and analogue signals in industrial installation networks, control, signal and control circuits, in metering technologies and in computer systems, common shield in the form of copper zinc-coated wires ensures proper transmission of signals and protects from electrical interference, cables are intended for flexible connections outside and inside of buildings, PARTRONIC LiYCYo – cables with special oil resistant softened PVC sheath are intended for usage under conditions of contact with petroleum derivative materials

Technical parameters

approximate capacitance (przy 800Hz):

core/core ≥0,25mm2 150 pF/m

core/coren ≥0,25mm2 270 pF/m

approximate inductance: 0,65 mH/km

Packing

coils, drums



PARTRONIC LiYCY; LiYCYo; LiYCY-Nr 300/300 V

Number and nominal

cross-section of conductor

[n x mm2]

Approximate

external cable diameter

[mm]

Approximate

cable weight

[kg/km]

2 x 0,5

5,4

43

3 x 0,5

5,7

53

4 x 0,5

6,2

57

5 x 0,5

6,5

67

6 x 0,5

7,2

78

7 x 0,5

7,4

89

8 x 0,5

8,1

100

10 x 0,5

8,7

119

12 x 0,5

9,3

125

14 x 0,5

9,8

151

16 x 0,5

10,3

180

18 x 0,5

10,8

185

20 x 0,5

11,3

213

21 x 0,5

11,6

230

27 x 0,5

13,2

284

30 x 0,5

13,9

310

36 x 0,5

15,4

393

40 x 0,5

16,1

443

44 x 0,5

17,1

488

48 x 0,5

17,7

521

52 x 0,5

18,3

550

56 x 0,5

19,2

626

61 x 0,5

19,9

660

2 x 0,75

5,9

49

3 x 0,75

6,4

61

4 x 0,75

6,9

77

5 x 0,75

7,5

89

6 x 0,75

8,2

100

7 x 0,75

8,5

114

8 x 0,75

9,2

131

10 x 0,75

10,0

156

12 x 0,75

10,7

179

16 x 0,75

11,9

229

20 x 0,75

13,2

276

24 x 0,75

15,0

363

27 x 0,75

15,8

399

30 x 0,75

16,4

442

36 x 0,75

17,0

514

40 x 0,75

19,4

623

2 x 1

6,2

57

3 x 1

6,5

72

4 x 1

7,2

85

5 x 1

7,8

104

6 x 1

8,5

121

7 x 1

8,8

134

8 x 1

9,7

154

10 x 1

10,4

184

12 x 1

11,2

215

16 x 1

12,4

277

20 x 1

13,7

32

25 x 1

15,6

436

27 x 1

16,0

468

30 x 1

16,7

509

36 x 1

18,4

612

2 x 1,5

7,2

79

3 x 1,5

7,6

98

4 x 1,5

8,5

124

5 x 1,5

9,1

133

6 x 1,5

10,1

156

7 x 1,5

10,3

177

8 x 1,5

11,3

197

10 x 1,5

12,1

242

12 x 1,5

13,1

270

16 x 1,5

14,9

357

20 x 1,5

16,7

429

21 x 1,5

17,5

463

24 x 1,5

19,6

559

25 x 1,5

19,9

589

37 x 1,5

22,0

864
