YDYt(żo) 300/500 V

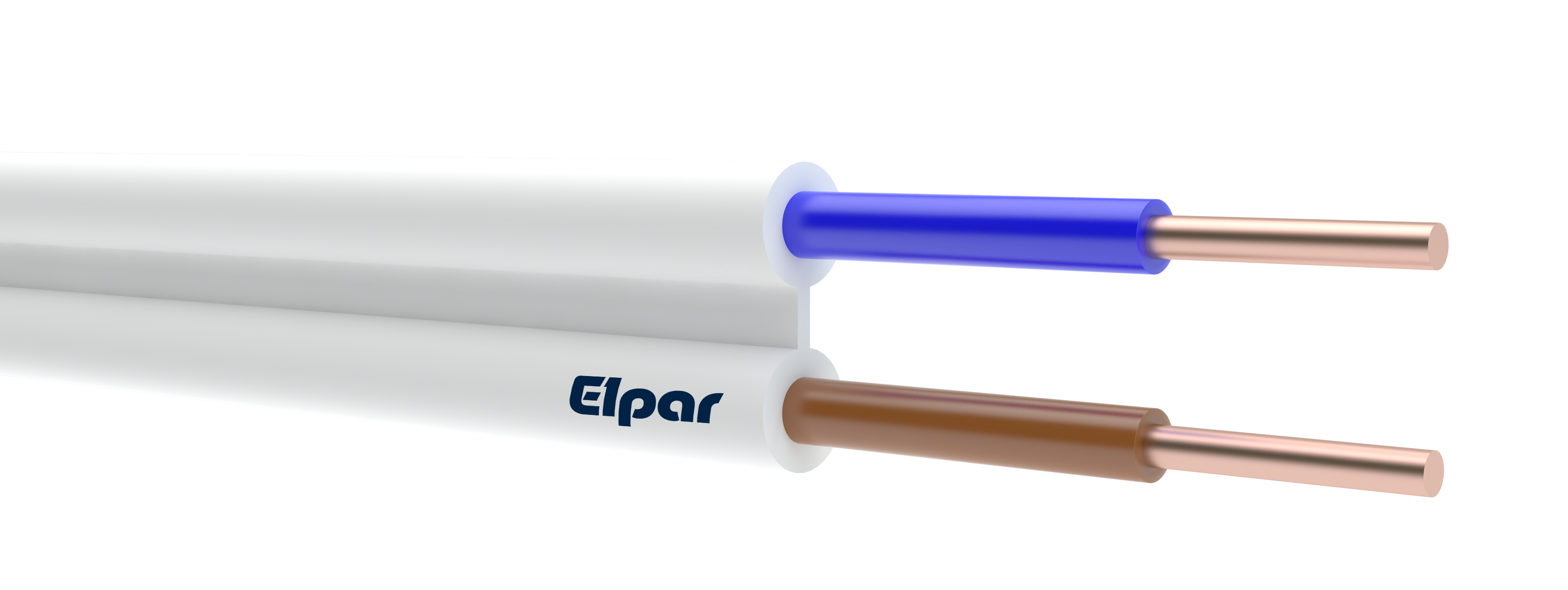

Conductor with single-wire copper cores (D) with PVC insulation (Y) and in PVC sheath (Y), flush-mounted (t), with green and yellow protective core (żo).
|
CONSTRUCTION: |
|
|
Conductors |
copper single-wire class 1, acc. to standard PN-EN 60228 |
|
Insulation |
PVC |
|
Sheath |
PVC |
|
Insulation colour |
2-core: blue, brown 3-core: green and yellow, blue, brown 3-core: brown, black, grey |
|
Operating temperature |
-40°C to +70°C |
|
Nominal voltage |
300/500 V |
|
Minimum bending radius |
conductor outer diameter D [mm] 6xD |
|
Application |
the conductors dedicated for permanent installations directly in the plaster layer or underneath the plaster layer, dedicated to work in environment of temperature from -40°C to +70°C and relative humidity to 100% |
|
Packing |
coils |
|
YDYt(żo) 300/500 V |
||
|
Number and nominal cross-section of conductor [n x mm2] |
Approximate outer dimension of the conductor [mm] |
Approximate cable weight [kg/km] |
|
2 x 1 |
3,4 x 10,4 |
46 |
|
2 x 1,5 |
3,6 x 10,9 |
57 |
|
2 x 2,5 |
4,0 x 11,7 |
76 |
|
3 x 1 |
3,4 x 13,5 |
67 |
|
3 x 1,5 |
3,6 x 14,6 |
83 |
|
3 x 2,5 |
4,0 x 15,9 |
113 |
