H07VVH6-F

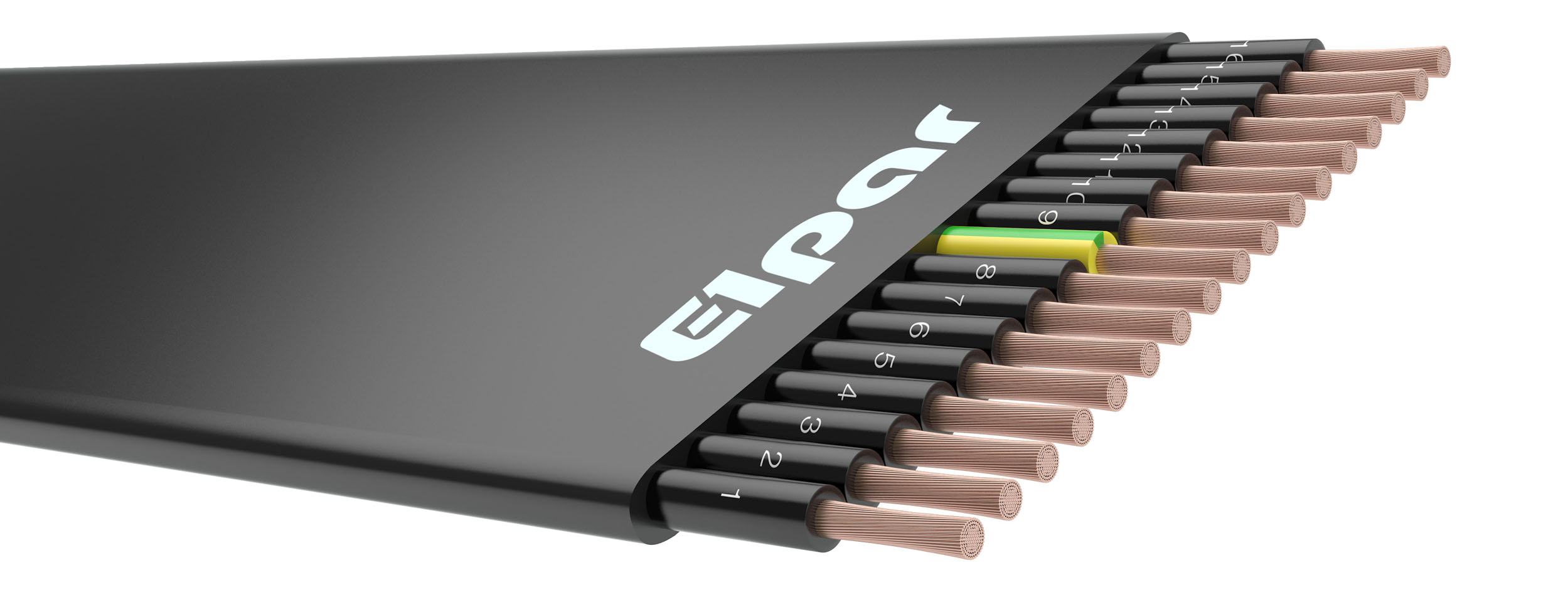

Flat control or power supply cable with numbered copper multi-wire conductors in softened PVC insulation and sheath. Manufactured in accordance with harmonized standard for 450/750 V nominal voltage
|
CONSTRUCTION: |
|
|
Conductors |
copper, multi-wire, class 5 as per PN-EN 60228 |
|
Insulation |
special softened PVC |
|
Central core |
conductors stranded in parallel |
|
Insulation colours |
green and yellow protective conductor, remaining conductors black, marked with numbers |
|
Sheath |
special softened PVC, black (grey) |
|
Operating temperature |
-30°C to +70°C |
|
Operating voltage |
450/750 V |
|
Bend radius |
min. bend radius 10 x cable diameter |
|
Application |
cables intended for lifts, conveyors and other machine-building industry applications, cables intended for dry and damp rooms |
|
Packing |
coils, drums |
|
H07VVH6-F |
||
|
Number and nominal cross-section of conductor [n x mm2] |
Approximate external cable diameter [mm] |
Approximate cable weight [kg/km] |
|
3 G 1,5 |
12,2/5,2 |
115,5 |
|
4 G 1,5 |
15,2/5,2 |
147 |
|
5 G 1,5 |
18,2/5,2 |
176 |
|
6 G 1,5 |
22,2/5,2 |
215,5 |
|
9 G 1,5 |
32,2/5,2 |
310 |
|
12 G 1,5 |
41,2/5,2 |
402 |
|
3 G 2,5 |
14,9/5,9 |
166,5 |
|
4 G 2,5 |
18,7/5,9 |
210 |
|
5 G 2,5 |
22,4/5,9 |
255,5 |
|
6 G 2,5 |
27,6/5,8 |
311,5 |
|
9 G 2,5 |
40,2/5,9 |
454 |
|
12 G 2,5 |
51,3/5,9 |
587 |
|
4 G 4 |
20,6/6,8 |
306 |
|
5 G 4 |
24,8/6,8 |
368,5 |
|
4 G 6 |
23,0/7,4 |
403 |
|
5 G 6 |
27,8/7,4 |
491,5 |
|
4 G 10 |
28,2/9,1 |
650 |
|
5 G 10 |
34,3/9,1 |
801 |
|
4 G 16 |
31,5/10,0 |
864 |
|
5 G 16 |
38,2/10,0 |
1064,5 |
|
4 G 25 |
40,1/12,5 |
1432 |
|
5 G 25 |
49,2/12,5 |
1770 |
