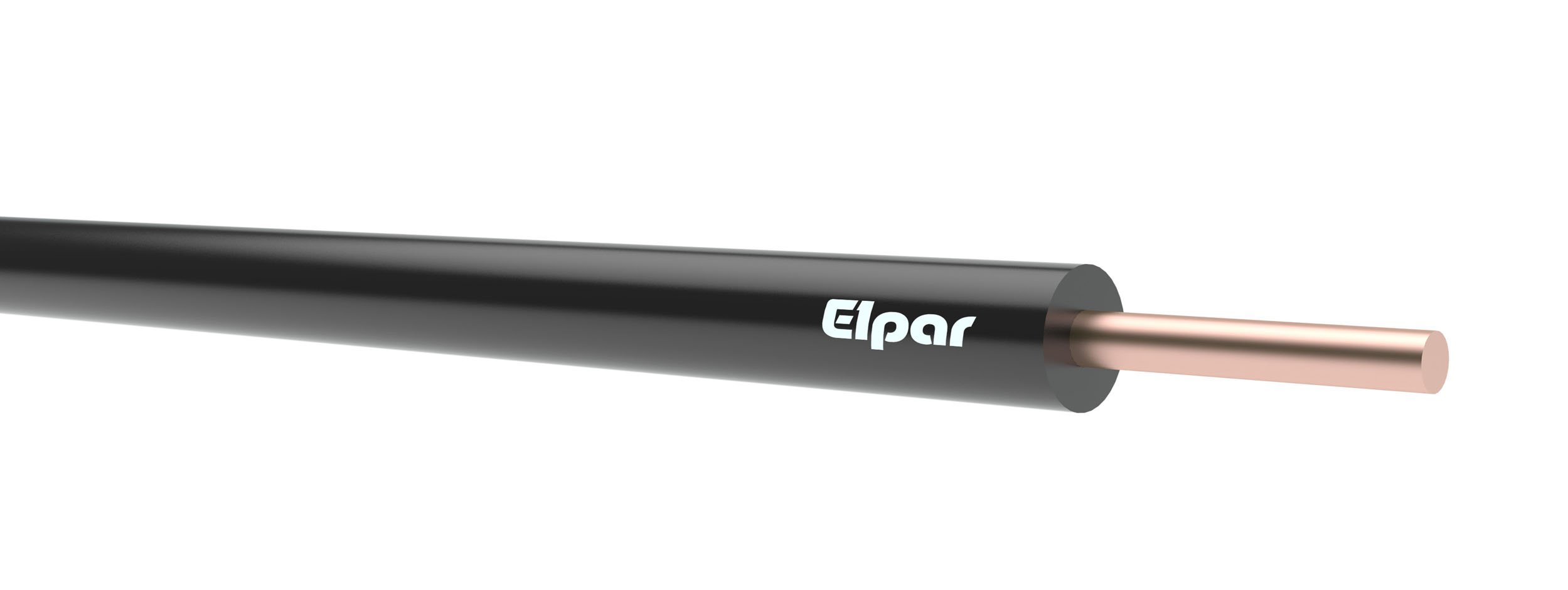

H07V-U, 07V-U (DY(żo) 450/750 V)
Conductor manufactured according to harmonised standard (H) for nominal voltage 450/750 V (07) in PVC insulation (V) with single-wire copper core (U).
|
CONSTRUCTION: |
||||
|
Conductors |
copper single-wire class 1, acc. to standard PN-EN 60228 |
|||
|
Insulation |
PVC |
|||
|
Insulation colour |
green and yellow, blue, brown, black, red, white, grey, orange, pink, turquoise, purple, other colours available on Client's request |
|||
|
Operating temperature |
-40°C to +70°C |
|||
|
Nominal voltage |
450/750 V |
|||
|
Minimum bending radius |
conductor outer diameter D [mm] |
|||
|
D≤8 |
8<D≤12 |
12<D≤20 |
D>20 |
|
|
normal use |
4xD |
5xD |
6xD |
6xD |
|
cautious bending by the end |
2xD |
4xD |
4xD |
4xD |
|
Application |
the conductors are dedicated to be installed permanently in installation tubes and in similar enclosed circuits and in permanently protected |
|||
|
Packing |
coils |
|||
|
H07V-U |
||
|
Nominal cross-section of conductor [mm2] |
Approximate external cable diameter [mm] |
Approximate cable weight [kg/km] |
|
1,5 |
2,8 |
19 |
|
2,5 |
3,3 |
30 |
|
4 |
3,8 |
44 |
|
6 |
4,3 |
63 |
|
10 |
5,5 |
104 |
|
07V-U |
||
|
Nominal cross-section of conductor [mm2] |
Approximate external cable diameter [mm] |
Approximate cable weight [kg/km] |
|
0,75 |
2,6 |
13 |
|
1 |
2,5 |
15 |
|
16 |
6,4 |
158 |
Warianty / Variants (16)
| ID | Wariant | Symbol | |
|---|---|---|---|
| 25 | 07V-U 1G1,0 | 07V-U (DY(żo) 450/750 V) | |
| 26 | 07V-U 1x1,0 | 07V-U (DY(żo) 450/750 V) | |
| 27 | H07V-U 1G1,5 | H07V-U (DY(żo) 450/750 V) | |
| 28 | H07V-U 1x1,5 | H07V-U (DY(żo) 450/750 V) | |
| 29 | H07V-U 1G2,5 | H07V-U (DY(żo) 450/750 V) | |
| 30 | H07V-U 1x2,5 | H07V-U (DY(żo) 450/750 V) | |
| 31 | H07V-U 1G4 | H07V-U (DY(żo) 450/750 V) | |
| 32 | H07V-U 1x4 | H07V-U (DY(żo) 450/750 V) | |
| 33 | H07V-U 1G6 | H07V-U (DY(żo) 450/750 V) | |
| 34 | H07V-U 1x6 | H07V-U (DY(żo) 450/750 V) | |
| 35 | H07V-U 1G10 | H07V-U (DY(żo) 450/750 V) | |
| 36 | H07V-U 1x10 | H07V-U (DY(żo) 450/750 V) | |
| 29503 | 07V-U 1x0,75 | H07V-U (DY(żo) 450/750 V) | |
| 29504 | 07V-U 1G0,75 | H07V-U (DY(żo) 450/750 V) | |
| 29505 | 07V-U 1G16 | H07V-U (DY(żo) 450/750 V) | |
| 29506 | 07V-U 1x16 | H07V-U (DY(żo) 450/750 V) |
