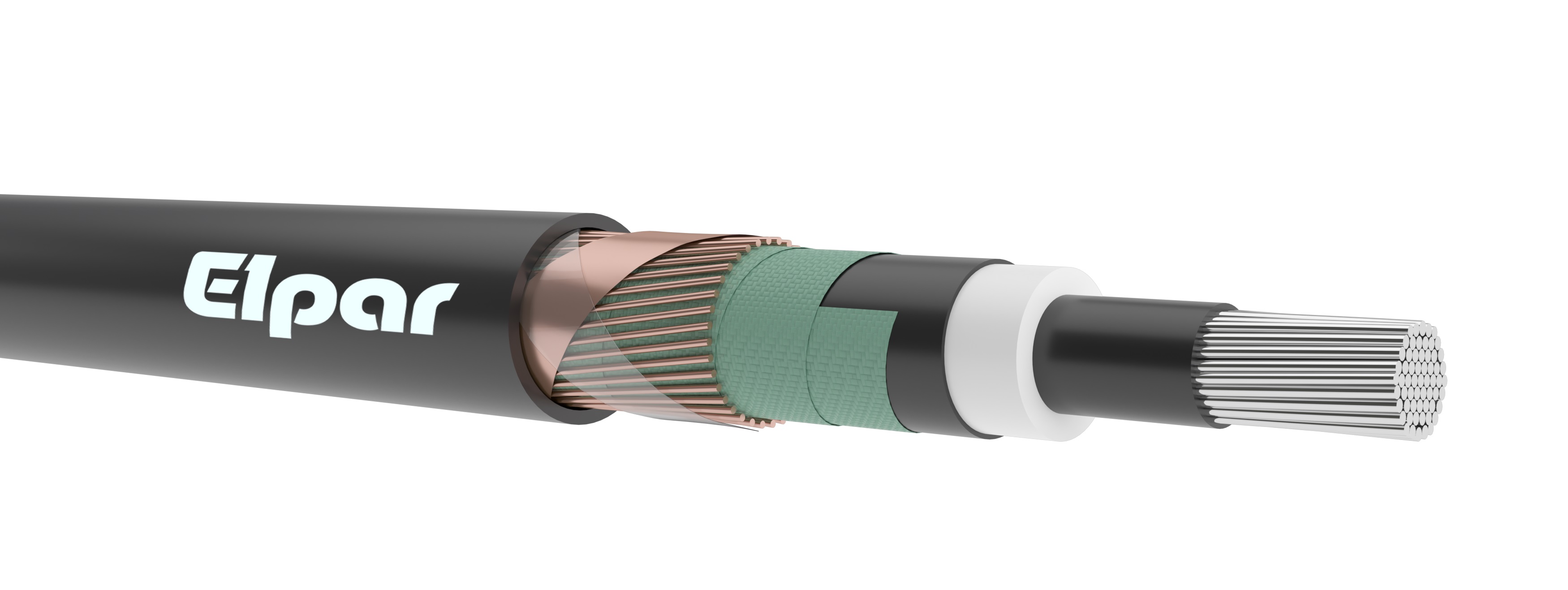

XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV
Single-conductor power cables (K) with aluminium (A) conductor with radial field (H), with normal thickness (1) cross-linked polyethylene (XS) insulation with coaxial copper return wire and increased flame propagation resistance polyethylene (Xn) sheath.
|
DESIGN |
|
|
Standard |
PN-HD 620 S3:2023-04 part 0, 1 and 10R |
|
Conductor |
Aluminium multi-stranded, round of class 2 |
|
Shield on the conductor |
Semi-conductive polyethylene |
|
Insulation |
Cross-linked polyethylene |
|
Shield on the insulation |
Semi-conductive polyethylene |
|
Shield wrapping |
Semi-conductive tape |
|
Return wire |
Copper wires, round + spiral copper tape |
|
Return wire wrapping |
Polyester tape |
|
Sheath |
Polyethylene |
|
Test voltage |
3.5U0 / 5 minutes |
|
Intensity of incomplete discharge |
max. 2pC/2U0 |
|
Max. conductor temperature for long-term load |
+90°C |
|
Max. conductor temp. at 5 sec. short circuit |
+250°C |
|
Lowest permissible cable laying temperature |
-20°C |
|
Minimum ambient temperature for permanent cable installation |
-30°C |
|
Max. conductor pulling force |
30 x S (S = Al conductor cross-section in mm2) [N] |
|
Minimum bending radius |
15xD, D – cable outside diameter [mm] |
|
Intended use |
Cables intended for the transmission of electricity, for use in MV power networks with a rated voltage not exceeding U0/U = 6/10kV; 8.7/15 kV; 12/20 kV; 18/30 kV. For laying directly in the ground, cable ducts, conduits and in the air. |
|
Packaging |
Cable reels |
|
Reaction to fire class in accordance with EN 13501-6 |
Eca |
|
XnHAKXS1 6/10kV |
|||||||
|
Conductor cross-section |
Return wire cross-section |
Rated thickness of |
Approximate cable outer diameter |
Approximate cable weight |
Max. conductor resistance at temp. |
||
|
insulation |
sheath |
20°C |
90°C |
||||
|
mm2 |
mm2 |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
|
|
50 |
16 |
3,4 |
2,5 |
25,4 |
672 |
0,641 |
0,825 |
|
70 |
25 |
3,4 |
2,5 |
26,9 |
846 |
0,443 |
0,570 |
|
95 |
35 |
3,4 |
2,5 |
28,9 |
1042 |
0,320 |
0,412 |
|
120 |
25 |
3,4 |
2,5 |
29,9 |
1050 |
0,253 |
0,326 |
|
120 |
50 |
3,4 |
2,5 |
30,3 |
1280 |
0,253 |
0,326 |
|
150 |
25 |
3,4 |
2,5 |
31,6 |
1167 |
0,206 |
0,265 |
|
150 |
50 |
3,4 |
2,5 |
32,0 |
1400 |
0,206 |
0,265 |
|
185 |
25 |
3,4 |
2,5 |
33,1 |
1300 |
0,164 |
0,211 |
|
185 |
50 |
3,4 |
2,5 |
33,5 |
1530 |
0,164 |
0,211 |
|
240 |
25 |
3,4 |
2,5 |
35,5 |
1500 |
0,125 |
0,161 |
|
240 |
50 |
3,4 |
2,5 |
35,9 |
1730 |
0,125 |
0,161 |
|
300 |
25 |
3,4 |
2,5 |
37,9 |
1712 |
0,100 |
0,129 |
|
300 |
50 |
3,4 |
2,5 |
38,3 |
1943 |
0,100 |
0,129 |
|
400 |
50 |
3,4 |
2,5 |
40,6 |
2260 |
0,0778 |
0,100 |
|
500 |
50 |
3,4 |
2,5 |
43,6 |
2567 |
0,0605 |
0,078 |
|
630 |
50 |
3,4 |
2,6 |
48,2 |
3158 |
0,0469 |
0,060 |
|
800 |
50 |
3,4 |
2,7 |
51,2 |
3611 |
0,0367 |
0,047 |
|
*By agreement between the parties, the cables can be manufactured with a return wire of a different cross-section than that shown in the table. |
|||||||
|
XnHAKXS1 8,7/15kV |
|||||||
|
Conductor cross-section |
Return wire cross-section |
Rated thickness of |
Approximate cable outer diameter |
Approximate cable weight |
Max. conductor resistance at temp. |
||
|
insulation |
sheath |
20°C |
90°C |
||||
|
mm2 |
mm2 |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
|
|
50 |
16 |
4,5 |
2,5 |
27,4 |
740 |
0,641 |
0,825 |
|
70 |
25 |
4,5 |
2,5 |
29,1 |
920 |
0,443 |
0,570 |
|
95 |
35 |
4,5 |
2,5 |
31,0 |
1114 |
0,320 |
0,412 |
|
120 |
25 |
4,5 |
2,5 |
31,8 |
1118 |
0,253 |
0,326 |
|
120 |
50 |
4,5 |
2,5 |
32,2 |
1343 |
0,253 |
0,326 |
|
150 |
25 |
4,5 |
2,5 |
33,7 |
1246 |
0,206 |
0,265 |
|
150 |
50 |
4,5 |
2,5 |
34,1 |
1470 |
0,206 |
0,265 |
|
185 |
25 |
4,5 |
2,5 |
35,2 |
1380 |
0,164 |
0,211 |
|
185 |
50 |
4,5 |
2,5 |
35,6 |
1605 |
0,164 |
0,211 |
|
240 |
25 |
4,5 |
2,5 |
37,3 |
1580 |
0,125 |
0,161 |
|
240 |
50 |
4,5 |
2,5 |
37,7 |
1805 |
0,125 |
0,161 |
|
300 |
25 |
4,5 |
2,5 |
39,8 |
1800 |
0,100 |
0,129 |
|
300 |
50 |
4,5 |
2,5 |
40,2 |
2024 |
0,100 |
0,129 |
|
400 |
50 |
4,5 |
2,5 |
43,6 |
2375 |
0,0778 |
0,100 |
|
500 |
50 |
4,5 |
2,5 |
46,2 |
2708 |
0,0605 |
0,078 |
|
630 |
50 |
4,5 |
2,6 |
50,3 |
3176 |
0,0469 |
0,060 |
|
800 |
50 |
4,5 |
2,8 |
53,5 |
3750 |
0,0367 |
0,047 |
|
*By agreement between the parties, the cables can be manufactured with a return wire of a different cross-section than that shown in the table. |
|||||||
|
XnHAKXS1 12/20kV |
|||||||
|
Conductor cross-section |
Return wire cross-section |
Rated thickness of |
Approximate cable outer diameter |
Approximate cable weight |
Max. conductor resistance at temp. |
||
|
insulation |
sheath |
20°C |
90°C |
||||
|
mm2 |
mm2 |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
|
|
50 |
16 |
5,5 |
2,5 |
29,5 |
832 |
0,641 |
0,825 |
|
70 |
25 |
5,5 |
2,5 |
31,2 |
1120 |
0,443 |
0,570 |
|
95 |
35 |
5,5 |
2,5 |
33,0 |
1221 |
0,320 |
0,412 |
|
120 |
25 |
5,5 |
2,5 |
34,0 |
1232 |
0,253 |
0,326 |
|
120 |
50 |
5,5 |
2,5 |
34,4 |
1467 |
0,253 |
0,326 |
|
150 |
25 |
5,5 |
2,5 |
35,8 |
1365 |
0,206 |
0,265 |
|
150 |
50 |
5,5 |
2,5 |
36,2 |
1591 |
0,206 |
0,265 |
|
185 |
25 |
5,5 |
2,5 |
37,2 |
1500 |
0,164 |
0,211 |
|
185 |
50 |
5,5 |
2,5 |
37,6 |
1730 |
0,164 |
0,211 |
|
240 |
25 |
5,5 |
2,5 |
39,6 |
1715 |
0,125 |
0,161 |
|
240 |
50 |
5,5 |
2,5 |
40,1 |
1953 |
0,125 |
0,161 |
|
300 |
25 |
5,5 |
2,5 |
41,6 |
1931 |
0,100 |
0,129 |
|
300 |
50 |
5,5 |
2,5 |
42,0 |
2162 |
0,100 |
0,129 |
|
400 |
50 |
5,5 |
2,5 |
44,7 |
2506 |
0,0778 |
0,100 |
|
500 |
50 |
5,5 |
2,6 |
47,7 |
2861 |
0,0605 |
0,078 |
|
630 |
50 |
5,5 |
2,7 |
52,0 |
3340 |
0,0469 |
0,060 |
|
800 |
50 |
5,5 |
2,9 |
55,4 |
3897 |
0,0367 |
0,047 |
|
*By agreement between the parties, the cables can be manufactured with a return wire of a different cross-section than that shown in the table. |
|||||||
|
XnHAKXS1 18/30kV |
|||||||
|
Conductor cross-section |
Return wire cross-section |
Rated thickness of |
Approximate cable outer diameter |
Approximate cable weight |
Max. conductor resistance at temp. |
||
|
insulation |
sheath |
20°C |
90°C |
||||
|
mm2 |
mm2 |
mm |
mm |
kg/km |
Ω/km |
Ω/km |
|
|
50 |
16 |
8,0 |
2,5 |
34,4 |
1054 |
0,641 |
0,825 |
|
70 |
25 |
8,0 |
2,5 |
35,9 |
1170 |
0,443 |
0,570 |
|
95 |
35 |
8,0 |
2,5 |
37,9 |
1416 |
0,320 |
0,412 |
|
120 |
25 |
8,0 |
2,5 |
38,8 |
1405 |
0,253 |
0,326 |
|
120 |
50 |
8,0 |
2,5 |
39,2 |
1708 |
0,253 |
0,326 |
|
150 |
25 |
8,0 |
2,5 |
40,5 |
1547 |
0,206 |
0,265 |
|
150 |
50 |
8,0 |
2,5 |
40,9 |
1848 |
0,206 |
0,265 |
|
185 |
25 |
8,0 |
2,5 |
42,0 |
1698 |
0,164 |
0,211 |
|
185 |
50 |
8,0 |
2,5 |
42,4 |
2000 |
0,164 |
0,211 |
|
240 |
25 |
8,0 |
2,5 |
44,4 |
1930 |
0,125 |
0,161 |
|
240 |
50 |
8,0 |
2,5 |
44,8 |
2233 |
0,125 |
0,161 |
|
300 |
25 |
8,0 |
2,5 |
46,4 |
2171 |
0,100 |
0,129 |
|
300 |
50 |
8,0 |
2,5 |
46,8 |
2463 |
0,100 |
0,129 |
|
400 |
50 |
8,0 |
2,6 |
49,5 |
2827 |
0,0778 |
0,100 |
|
500 |
50 |
8,0 |
2,8 |
52,7 |
3222 |
0,0605 |
0,078 |
|
630 |
50 |
8,0 |
2,9 |
57,5 |
3764 |
0,0469 |
0,060 |
|
800 |
50 |
8,0 |
3,1 |
61,2 |
4400 |
0,0367 |
0,047 |
|
*By agreement between the parties, the cables can be manufactured with a return wire of a different cross-section than that shown in the table. |
|||||||
Warianty / Variants (51)
| ID | Wariant | Symbol | |
|---|---|---|---|
| 30362 | XnHAKXS 6/10kV 1x35/16 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30866 | XnHAKXS 6/10kV 1x50/16 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30867 | XnHAKXS 6/10kV 1x70/25 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30868 | XnHAKXS 6/10kV 1x95/35 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30869 | XnHAKXS 6/10kV 1x120/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30870 | XnHAKXS 6/10kV 1x150/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30871 | XnHAKXS 6/10kV 1x185/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30872 | XnHAKXS 6/10kV 1x240/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30873 | XnHAKXS 6/10kV 1x300/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30874 | XnHAKXS 6/10kV 1x400/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30875 | XnHAKXS 6/10kV 1x500/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30876 | XnHAKXS 6/10kV 1x630/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30877 | XnHAKXS 6/10kV 1x800/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30878 | XnHAKXS 8,7/15kV 1x35/16 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30879 | XnHAKXS 8,7/15kV 1x50/16 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30880 | XnHAKXS 8,7/15kV 1x70/25 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30881 | XnHAKXS 8,7/15kV 1x95/35 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30882 | XnHAKXS 8,7/15kV 1x120/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30883 | XnHAKXS 8,7/15kV 1x150/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30884 | XnHAKXS 8,7/15kV 1x185/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30885 | XnHAKXS 8,7/15kV 1x240/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30886 | XnHAKXS 8,7/15kV 1x300/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30887 | XnHAKXS 8,7/15kV 1x400/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30888 | XnHAKXS 8,7/15kV 1x500/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30889 | XnHAKXS 8,7/15kV 1x630/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30890 | XnHAKXS 8,7/15kV 1x800/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30891 | XnHAKXS 12/20kV 1x35/16 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30892 | XnHAKXS 12/20kV 1x50/16 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30893 | XnHAKXS 12/20kV 1x70/25 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30894 | XnHAKXS 12/20kV 1x95/35 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30895 | XnHAKXS 12/20kV 1x120/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30896 | XnHAKXS 12/20kV 1x150/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30897 | XnHAKXS 12/20kV 1x185/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30898 | XnHAKXS 12/20kV 1x240/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30899 | XnHAKXS 12/20kV 1x300/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30900 | XnHAKXS 12/20kV 1x400/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30901 | XnHAKXS 12/20kV 1x500/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30902 | XnHAKXS 12/20kV 1x630/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30903 | XnHAKXS 12/20kV 1x800/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30904 | XnHAKXS 18/30kV 1x50/16 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30905 | XnHAKXS 18/30kV 1x70/25 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30906 | XnHAKXS 18/30kV 1x95/35 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30907 | XnHAKXS 18/30kV 1x120/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30908 | XnHAKXS 18/30kV 1x150/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30909 | XnHAKXS 18/30kV 1x185/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30910 | XnHAKXS 18/30kV 1x240/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30911 | XnHAKXS 18/30kV 1x300/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30912 | XnHAKXS 18/30kV 1x500/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30913 | XnHAKXS 18/30kV 1x630/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV | |
| 30914 | XnHAKXS 18/30kV 1x800/50 | XnHAKXS1 6/10kV; 8,7/15kV; 12/20kV; 18/30kV |
Wydruk obejmuje opis rodziny i widoczną stronę wariantów. Pełny zestaw można przeglądać kolejnymi stronami.
