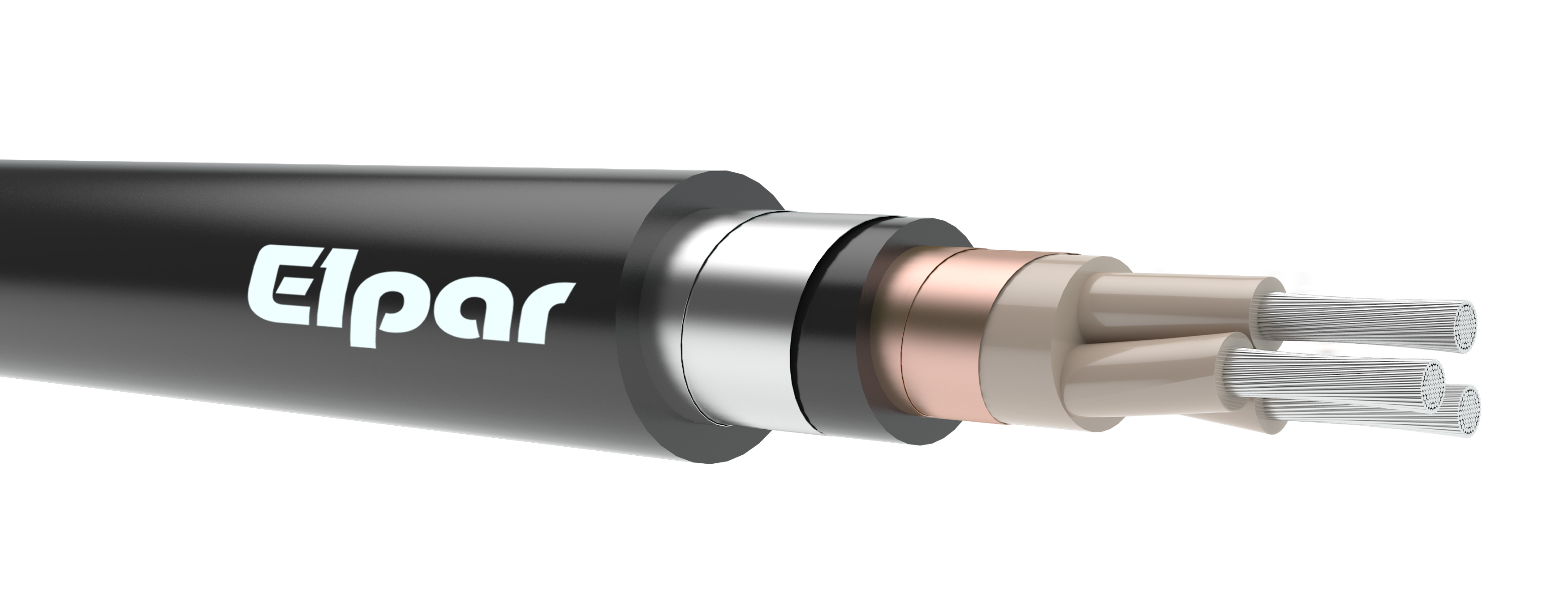

YAKYFty 3,6/6 kV
Power cable (K), aluminium conductors (A), PVC insulation (Y), with copper return conductor on the insulation or filling compound, with PVC sheath (Y), steel band armour (Ft), PVC protective guard extruded on the armour (y).
|
CONSTRUCTION: |
|
|
Conductors |
aluminium, class 1 and 2, ref. PN-EN 60228, SE - sector single wire SM - sector multistranded |
|
Insulation |
PVC |
|
Filling compound |
PVC |
|
Protective guard |
PVC |
|
Return conductor |
copper strip or round copper wire |
|
Sheath |
PVC |
|
Armour |
steel bands |
|
Insulation colour |
natural |
|
Operating temperature |
-30°C to +70°C |
|
Nominal voltage |
3,6/6 kV |
|
Minimum bending radius |
conductor outer diameter D [mm] 10xD |
|
Application |
power cables are intended for electrical power transmission and used in power equipment at industrial plants, power plants and local power supply grids in urban areas, they can be used for permanent laying indoor and outdoor, in cable ducts or directly in the ground at locations exposed to strong mechanical damage |
|
Packing |
drums |
|
YAKYFty 3,6/6 kV |
||
|
Liczba i przekrój znamionowy żył [n x mm2] |
Przybliżona średnica zewnętrzna przewodu [mm] |
Orientacyjna masa przewodu [kg/km] |
|
Number and nominal cross-section of conductor [n x mm2] |
Approximate external cable diameter [mm] |
Approximate cable weight [kg/km] |
|
3 x 25 SE / 16 |
38,8 |
2265 |
|
3 x 35 SM / 16 |
40,7 |
2478 |
|
3 x 50 SM / 16 |
47,2 |
3457 |
|
3 x 70 SM / 16 |
52,6 |
4145 |
|
3 x 95 SM / 25 |
57,1 |
4925 |
|
3 x 120 SM / 35 |
60,0 |
5615 |
|
3 x 150 SM / 50 |
63,3 |
6178 |
|
3 x 185 SM / 50 |
66,9 |
6873 |
|
3 x 240 SM / 50 |
71,8 |
8409 |
|
3 x 300 SM / 50 |
75,2 |
9252 |
Warianty / Variants (18)
| ID | Wariant | Symbol | |
|---|---|---|---|
| 28483 | YAKYFty 3,6/6kV 3x16RMC/16 | YAKYFty 3,6/6 kV | |
| 28484 | YAKYFty 3,6/6kV 3x25RMC/16 | YAKYFty 3,6/6 kV | |
| 28485 | YAKYFty 3,6/6kV 3x35RMC/16 | YAKYFty 3,6/6 kV | |
| 28486 | YAKYFty 3,6/6kV 3x50RMC/16 | YAKYFty 3,6/6 kV | |
| 28487 | YAKYFty 3,6/6kV 3x70RMC/25 | YAKYFty 3,6/6 kV | |
| 28488 | YAKYFty 3,6/6kV 3x95RMC/35 | YAKYFty 3,6/6 kV | |
| 28489 | YAKYFty 3,6/6kV 3x120RMC/50 | YAKYFty 3,6/6 kV | |
| 28490 | YAKYFty 3,6/6kV 3x150RMC/50 | YAKYFty 3,6/6 kV | |
| 28491 | YAKYFty 3,6/6kV 3x185RMC/50 | YAKYFty 3,6/6 kV | |
| 28492 | YAKYFty 3,6/6kV 3x240RMC/50 | YAKYFty 3,6/6 kV | |
| 28493 | YAKYFty 3,6/6kV 3x35SM/16 | YAKYFty 3,6/6 kV | |
| 28494 | YAKYFty 3,6/6kV 3x50SM/16 | YAKYFty 3,6/6 kV | |
| 28495 | YAKYFty 3,6/6kV 3x70SM/25 | YAKYFty 3,6/6 kV | |
| 28496 | YAKYFty 3,6/6kV 3x95SM/35 | YAKYFty 3,6/6 kV | |
| 28497 | YAKYFty 3,6/6kV 3x120SM/50 | YAKYFty 3,6/6 kV | |
| 28498 | YAKYFty 3,6/6kV 3x150SM50 | YAKYFty 3,6/6 kV | |
| 28499 | YAKYFty 3,6/6kV 3x185SM/50 | YAKYFty 3,6/6 kV | |
| 28500 | YAKYFty 3,6/6kV 3x240SM/50 | YAKYFty 3,6/6 kV |
