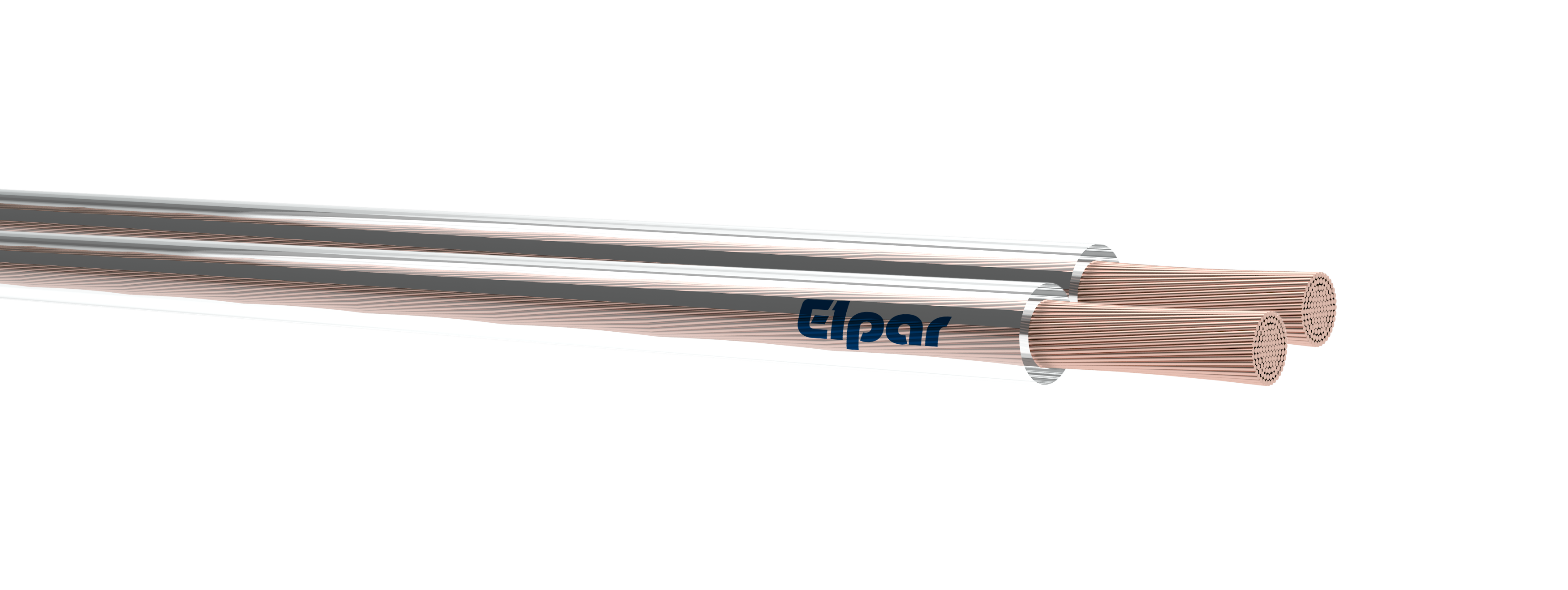

TLYp, TLgYp

Telecommunication (T) cable, two-conductor, flexible (Lg) multi-wire (L) copper conductors in common PVC insulation (Y), flat (p).

CONSTRUCTION:
Conductors	TLYp: copper multi-wire class 5 TLgYp: copper multi-wire class 6
Common insulation	PVC, transparent, with a single conductor highlighted by an lengthwise embedded colour strip, insulated conductors with a bridge to facilitate conductor separation
Operating temperature	od -35ºC do +80ºC
Application	cables for connections between LF power amplifiers and loudspeaker columns
Packing	rollers and drums

TLYp
Conductor number and rated cross-section [n x mm²]	Cable outer dimension, approximate [mm]	Approximate cable weight [kg/km]
2 x 0,5	2,0 x 4,1	15
2 x 0,75	2,1 x 4,4	20
2 x 1,0	2,2 x 4,6	24
2 x 1,5	2,5 x 5,2	34
2 x 2,5	3,3 x 6,9	57
2 x 4,0	4,1 x 8,5	91

TLgYp
Conductor number and rated cross-section [n x mm²]	Cable outer dimension, approximate [mm]	Approximate cable weight [kg/km]
2 x 0,5	2,0 x 4,1	15
2 x 0,75	2,1 x 4,4	20
2 x 1,0	2,2 x 4,6	24
2 x 1,5	2,5 x 5,2	34
2 x 2,5	3,3 x 6,9	57
2 x 4,0	4,1 x 8,5	91

Warianty / Variants (24)

ID	Wariant	Symbol
27536	TLYp 2x0,5	TLYp
27537	TLYp 2x0,75	TLYp
27538	TLYp 2x1,0	TLYp
27539	TLYp 2x1,5	TLYp
27540	TLYp 2x2,5	TLYp
27541	TLYp 2x4	TLYp
27542	TLgYp 2x0,5	TLgYp
27543	TLgYp 2x0,75	TLgYp
27544	TLgYp 2x1,0	TLgYp
27545	TLgYp 2x1,5	TLgYp
27546	TLgYp 2x2,5	TLgYp
27547	TLgYp 2x4	TLgYp
27548	TLYp 2x0,5	TLYp
27549	TLYp 2x0,75	TLYp
27550	TLYp 2x1,0	TLYp
27551	TLYp 2x1,5	TLYp
27552	TLYp 2x2,5	TLYp
27553	TLYp 2x4	TLYp
27554	TLgYp 2x0,5	TLgYp
27555	TLgYp 2x0,75	TLgYp
27556	TLgYp 2x1,0	TLgYp
27557	TLgYp 2x1,5	TLgYp
27558	TLgYp 2x2,5	TLgYp
27559	TLgYp 2x4	TLgYp
