YnTKSYekw, YnTKSXekw

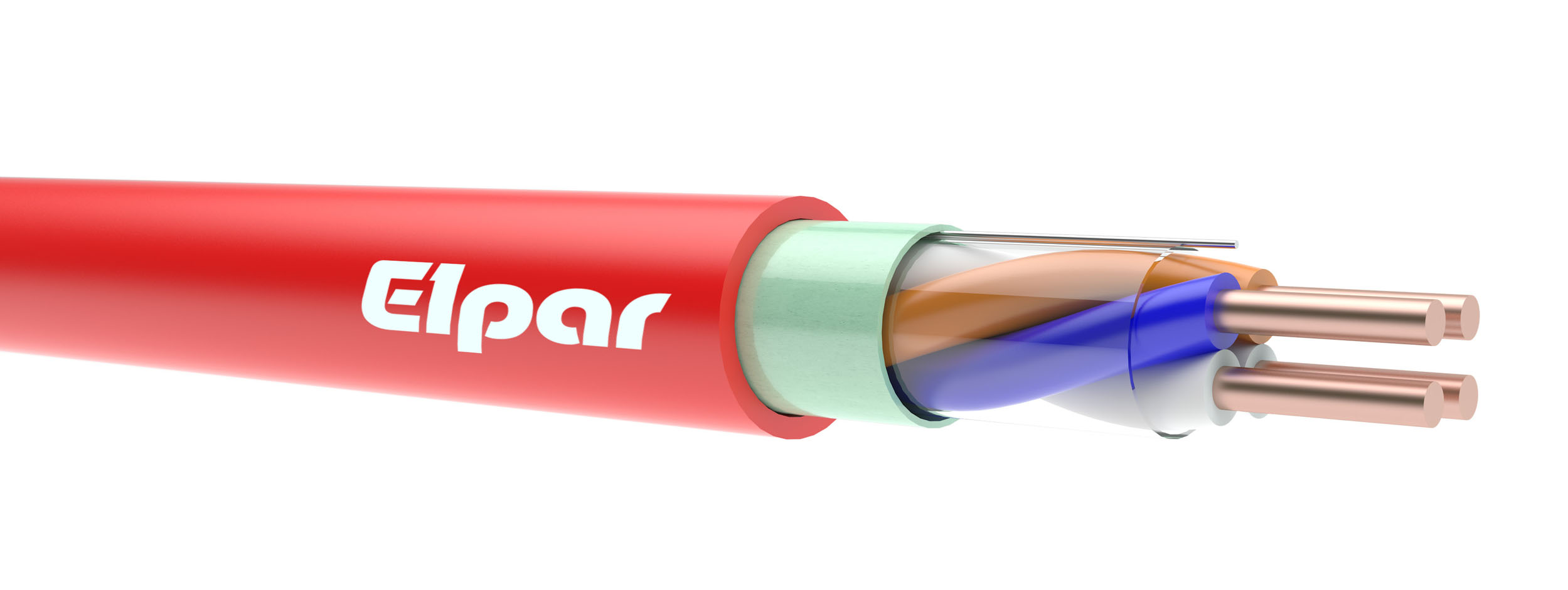

Local (S) telecommunications (T) cable (K) with copper single-wire conductors in softened PVC insulation (Y) and softened flame retardant PVC sheath (Yn), with common shield on the central core (ekw).
Warianty / Variants (16)
| ID | Wariant | Symbol | |
|---|---|---|---|
| 27420 | YnTKSYekw 1x2x0,8 | YnTKSYekw | |
| 27421 | YnTKSYekw 2x2x0,8 | YnTKSYekw | |
| 27422 | YnTKSYekw 3x2x0,8 | YnTKSYekw | |
| 27423 | YnTKSYekw 5x2x0,8 | YnTKSYekw | |
| 27424 | YnTKSYekw 6x2x0,8 | YnTKSYekw | |
| 27425 | YnTKSYekw 7x2x0,8 | YnTKSYekw | |
| 27426 | YnTKSYekw 10x2x0,8 | YnTKSYekw | |
| 27427 | YnTKSYekw 1x2x1,0 | YnTKSYekw | |
| 27428 | YnTKSYekw 2x2x1,0 | YnTKSYekw | |
| 27429 | YnTKSYekw 3x2x1,0 | YnTKSYekw | |
| 27430 | YnTKSYekw 5x2x1,0 | YnTKSYekw | |
| 27431 | YnTKSYekw 6x2x1,0 | YnTKSYekw | |
| 27432 | YnTKSYekw 7x2x1,0 | YnTKSYekw | |
| 27433 | YnTKSYekw 10x2x1,0 | YnTKSYekw | |
| 27455 | YnTKSXekw 1x2x1,05 | YnTKSXekw | |
| 27456 | YnTKSXekw 1x4x1,05 | YnTKSXekw |
Wydruk obejmuje opis rodziny i widoczną stronę wariantów. Pełny zestaw można przeglądać kolejnymi stronami.
