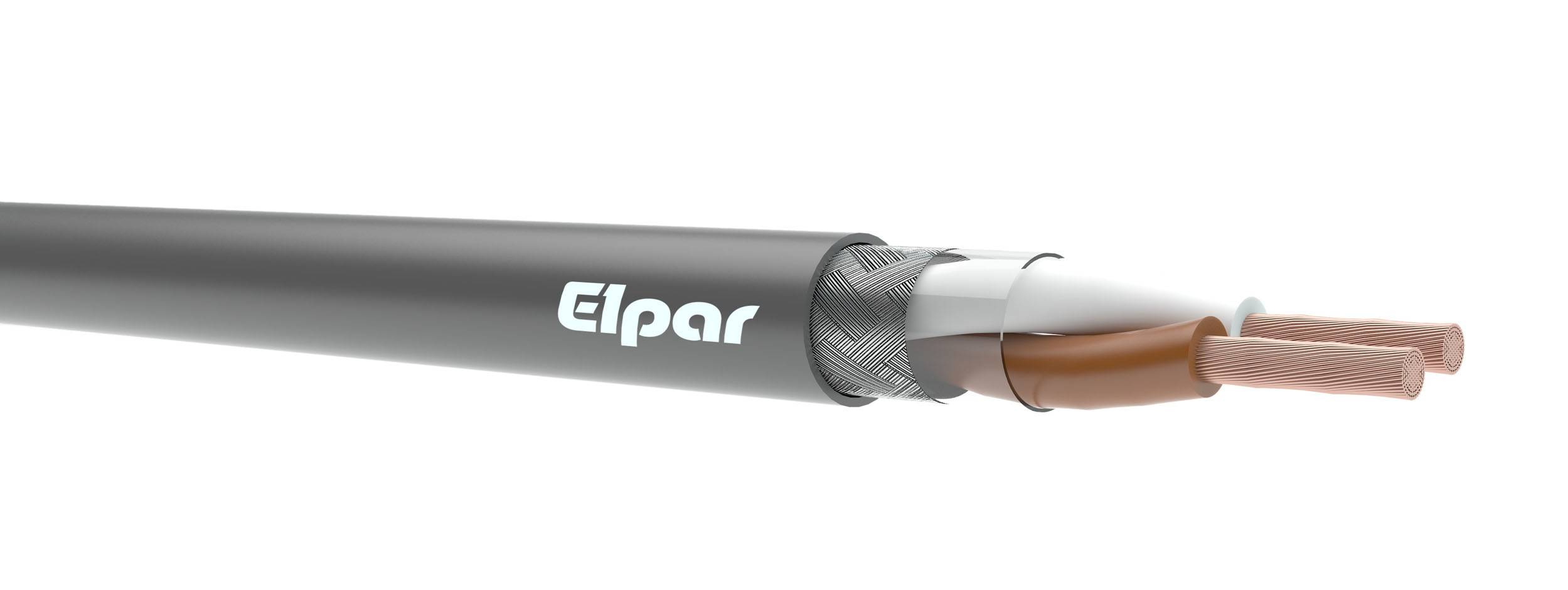

PARTRONIC LiHCH, LiHCH-P 300/300 V
Control cable with copper multi-wire conductors (Li) in halogen-free insulation (H) and halogen-free sheath (H), with common shield on central core in the form of a braid of copper zinc-coated wires (C), with coloured conductors.
|
CONSTRUCTION:
|
|
|
Conductors
|
copper, multi-wire, class 5 as per PN-EN 60228
|
|
Insulation
|
special halogen-free
|
|
Cable core
|
layers stranded into a central core
|
|
Central core
|
wrapped in a polyester tape
|
|
Shield
|
braid of copper zinc-coated wires
|
|
Sheath
|
special halogen-free, self-extinguishing and flame retardant, grey
|
|
Insulation colours
|
from 1 to 10 colours as per DIN 47100, from 11 to 61 cores – bi-colour conductors, second colour is a longitudinal strip
|
|
Operating temperature
|
for fixed systems: -30°C to +70°C for mobile systems: -5°C to +70°C
|
|
Nominal voltage
|
300/300 V
|
|
Bend radius
|
min. bend radius for flexible connections 10 x cable diameter min. bend radius for fixed installations 5 x cable diameter
|
|
Application
|
cables intended to transmit data via digital and analogue signals in industrial installation networks, control, signal and control circuits, in metering technologies and in computer systems, common shield in the form of copper zinc-coated wires ensures proper transmission of signals and protects from electrical interference, cables are intended for flexible connections outside and inside of buildings
|
|
Technical parameters
|
approximate capacitance (at 1 Hz): ≥0,5 mm2 110 nF/km ≥0,75 mm2 120 nF/km ≥1,0 mm2 130 nF/km ≥1,5 mm2 130 nF/km approximate inductance: 0,7 mH/km
|
|
Packing
|
coils, drums
|
|
PARTRONIC LiHCH 300/300 V
|
||
|
Liczba i przekrój znamionowy żył [n x mm2]
|
Przybliżona średnica zewnętrzna przewodu [mm]
|
Orientacyjna masa przewodu [kg/km]
|
|
Number and nominal cross-section of conductor [n x mm2]
|
Approximate external cable diameter [mm]
|
Approximate cable weight [kg/km]
|
|
2 x 0,5
|
5,4
|
43
|
|
3 x 0,5
|
5,7
|
53
|
|
4 x 0,5
|
6,2
|
57
|
|
5 x 0,5
|
6,5
|
67
|
|
6 x 0,5
|
7,2
|
78
|
|
7 x 0,5
|
7,4
|
89
|
|
8 x 0,5
|
8,1
|
100
|
|
10 x 0,5
|
8,7
|
119
|
|
12 x 0,5
|
9,3
|
125
|
|
14 x 0,5
|
9,8
|
151
|
|
16 x 0,5
|
10,3
|
180
|
|
18 x 0,5
|
10,8
|
185
|
|
20 x 0,5
|
11,3
|
213
|
|
21 x 0,5
|
11,6
|
230
|
|
27 x 0,5
|
13,2
|
284
|
|
30 x 0,5
|
13,9
|
310
|
|
36 x 0,5
|
15,4
|
393
|
|
40 x 0,5
|
16,1
|
443
|
|
44 x 0,5
|
17,1
|
488
|
|
48 x 0,5
|
17,7
|
521
|
|
52 x 0,5
|
18,3
|
550
|
|
56 x 0,5
|
19,2
|
626
|
|
61 x 0,5
|
19,9
|
660
|
|
2 x 0,75
|
5,9
|
49
|
|
3 x 0,75
|
6,4
|
61
|
|
4 x 0,75
|
6,9
|
77
|
|
5 x 0,75
|
7,5
|
89
|
|
6 x 0,75
|
8,2
|
100
|
|
7 x 0,75
|
8,5
|
114
|
|
8 x 0,75
|
9,2
|
131
|
|
10 x 0,75
|
10,0
|
156
|
|
12 x 0,75
|
10,7
|
179
|
|
16 x 0,75
|
11,9
|
229
|
|
20 x 0,75
|
13,2
|
276
|
|
27 x 0,75
|
15,8
|
399
|
|
30 x 0,75
|
16,4
|
442
|
|
36 x 0,75
|
17,0
|
514
|
|
40 x 0,75
|
19,4
|
623
|
|
2 x 1
|
6,2
|
57
|
|
3 x 1
|
6,5
|
72
|
|
4 x 1
|
7,2
|
85
|
|
5 x 1
|
7,8
|
104
|
|
6 x 1
|
8,5
|
121
|
|
7 x 1
|
8,8
|
134
|
|
8 x 1
|
9,7
|
154
|
|
10 x 1
|
10,4
|
184
|
|
12 x 1
|
11,2
|
215
|
|
16 x 1
|
12,4
|
277
|
|
20 x 1
|
13,7
|
32
|
|
25 x 1
|
15,6
|
436
|
|
27 x 1
|
16,0
|
468
|
|
30 x 1
|
16,7
|
509
|
|
36 x 1
|
18,4
|
612
|
|
2 x 1,5
|
7,2
|
79
|
|
3 x 1,5
|
7,6
|
98
|
|
4 x 1,5
|
8,5
|
124
|
|
5 x 1,5
|
9,1
|
133
|
|
6 x 1,5
|
10,1
|
156
|
|
7 x 1,5
|
10,3
|
177
|
|
8 x 1,5
|
11,3
|
197
|
|
10 x 1,5
|
12,1
|
242
|
|
12 x 1,5
|
13,1
|
270
|
|
16 x 1,5
|
14,9
|
357
|
|
20 x 1,5
|
16,7
|
429
|
|
21 x 1,5
|
17,5
|
463
|
|
24 x 1,5
|
19,6
|
559
|
|
25 x 1,5
|
19,9
|
589
|
|
37 x 1,5
|
22,0
|
864
|
Warianty / Variants (140)
| ID | Wariant | Symbol | |
|---|---|---|---|
| 15729 | PARTRONIC LiHCH 2x0,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15730 | PARTRONIC LiHCH 2x0,75 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15731 | PARTRONIC LiHCH 2x1 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15732 | PARTRONIC LiHCH 2x1,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15733 | PARTRONIC LiHCH 2x2,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15734 | PARTRONIC LiHCH 3x0,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15735 | PARTRONIC LiHCH 3x0,75 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15736 | PARTRONIC LiHCH 3x1 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15737 | PARTRONIC LiHCH 3x1,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15738 | PARTRONIC LiHCH 3x2,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15739 | PARTRONIC LiHCH 4x0,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15740 | PARTRONIC LiHCH 4x0,75 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15741 | PARTRONIC LiHCH 4x1 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15742 | PARTRONIC LiHCH 4x1,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15743 | PARTRONIC LiHCH 4x2,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15744 | PARTRONIC LiHCH 5x0,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15745 | PARTRONIC LiHCH 5x0,75 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15746 | PARTRONIC LiHCH 5x1 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15747 | PARTRONIC LiHCH 5x1,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15748 | PARTRONIC LiHCH 5x2,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15749 | PARTRONIC LiHCH 6x0,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15750 | PARTRONIC LiHCH 6x0,75 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15751 | PARTRONIC LiHCH 6x1 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15752 | PARTRONIC LiHCH 6x1,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15753 | PARTRONIC LiHCH 6x2,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15754 | PARTRONIC LiHCH 7x0,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15755 | PARTRONIC LiHCH 7x0,75 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15756 | PARTRONIC LiHCH 7x1 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15757 | PARTRONIC LiHCH 7x1,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15758 | PARTRONIC LiHCH 7x2,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15759 | PARTRONIC LiHCH 8x0,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15760 | PARTRONIC LiHCH 8x0,75 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15761 | PARTRONIC LiHCH 8x1 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15762 | PARTRONIC LiHCH 8x1,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15763 | PARTRONIC LiHCH 8x2,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15764 | PARTRONIC LiHCH 10x0,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15765 | PARTRONIC LiHCH 10x0,75 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15766 | PARTRONIC LiHCH 10x1 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15767 | PARTRONIC LiHCH 10x1,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15768 | PARTRONIC LiHCH 10x2,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15769 | PARTRONIC LiHCH 12x0,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15770 | PARTRONIC LiHCH 12x0,75 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15771 | PARTRONIC LiHCH 12x1 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15772 | PARTRONIC LiHCH 12x1,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15773 | PARTRONIC LiHCH 12x2,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15774 | PARTRONIC LiHCH 14x0,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15775 | PARTRONIC LiHCH 14x0,75 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15776 | PARTRONIC LiHCH 14x1 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15777 | PARTRONIC LiHCH 14x1,5 300/300V | PARTRONIC LiHCH 300/300 V | |
| 15778 | PARTRONIC LiHCH 14x2,5 300/300V | PARTRONIC LiHCH 300/300 V |
Wydruk obejmuje opis rodziny i widoczną stronę wariantów. Pełny zestaw można przeglądać kolejnymi stronami.
