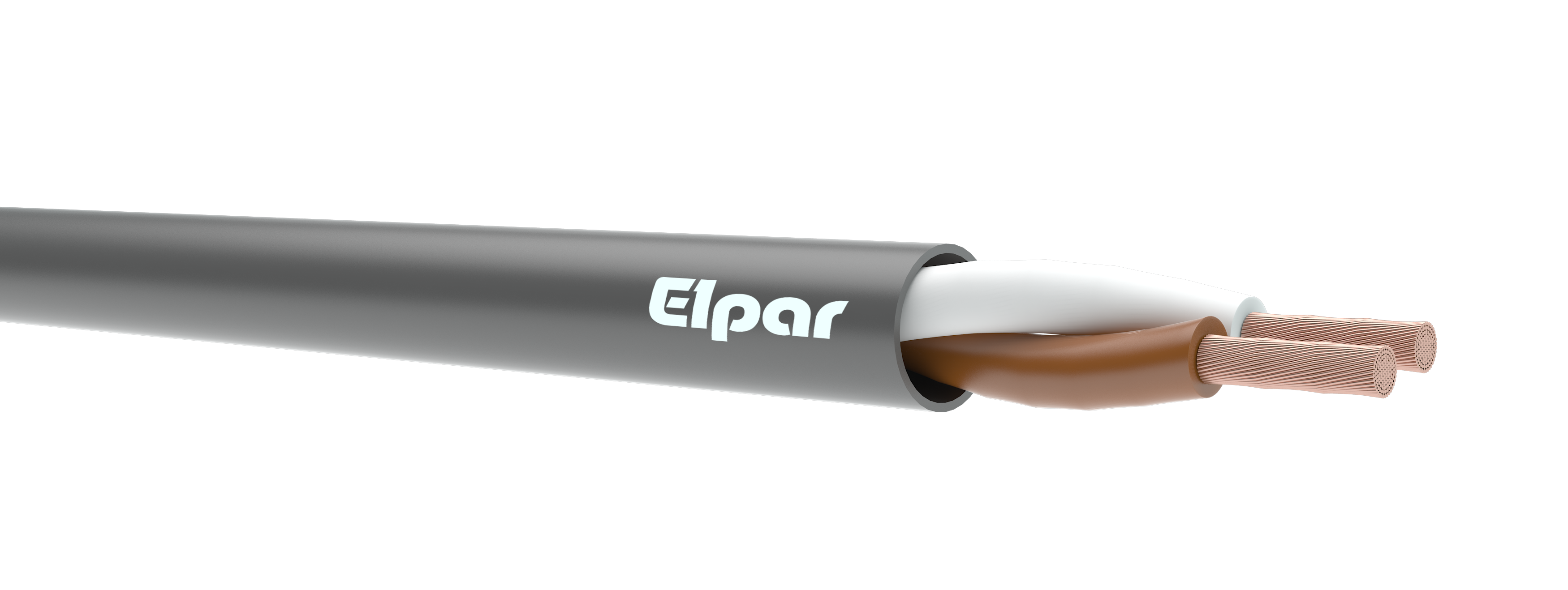

PARTRONIC LiHH, LiHH-P 300/300 V
Control cable with copper multi-wire conductors (Li) in halogen-free insulation (H) and halogen-free sheath (H).
|
CONSTRUCTION:
|
|
|
Conductors
|
copper, multi-wire, class 5 as per PN-EN 60228
|
|
Insulation
|
halogen-free material
|
|
Cable core
|
layers stranded into a central core
|
|
Sheath
|
special halogen-free, self-extinguishing and flame retardant, grey
|
|
Insulation colours
|
from 1 to 10 colours as per DIN 47100, from 11 to 61 cores – bi-colour conductors, second colour is a longitudinal strip or, in case of PARTRONIC LiHH-Nr cables – black conductors marked with numbers
|
|
Operating temperature
|
for fixed systems: -30°C to +70°C for mobile systems: -5°C to +70°C
|
|
Nominal voltage
|
300/300 V
|
|
Bend radius
|
min. bend radius for flexible connections 10 x cable diameter min. bend radius for fixed installations 5 x cable diameter
|
|
Application
|
cables intended for usage in control, signal and control circuits, in metering technologies and to transmit data via digital and analogue signals in industrial electronics and automation systems and in computer systems, suitable for fixed installations and flexible connections inside buildings
|
|
Technical parameters
|
approximate capacitance (at 1 Hz): ≥0,25 mm2 150 nF/km ≥0,34 mm2 110 nF/km ≥0,5 mm2 100 nF/km ≥0,75 mm2 110 nF/km ≥1,0 mm2 120 nF/km ≥1,5 mm2 120 nF/km approximate inductance: 0,7 mH/km
|
|
Packing
|
coils, drums
|
|
PARTRONIC LiHH 300/300 V
|
||
|
Liczba i przekrój znamionowy żył [n x mm2]
|
Przybliżona średnica zewnętrzna przewodu [mm]
|
Orientacyjna masa przewodu [kg/km]
|
|
Number and nominal cross-section of conductor [n x mm2]
|
Approximate external cable diameter [mm]
|
Approximate cable weight [kg/km]
|
|
2 x 0,5
|
4,7
|
28
|
|
3 x 0,5
|
5,0
|
34
|
|
4 x 0,5
|
5,6
|
44
|
|
5 x 0,5
|
6,0
|
52
|
|
6 x 0,5
|
6,5
|
55
|
|
7 x 0,5
|
6,9
|
63
|
|
8 x 0,5
|
7,5
|
72
|
|
10 x 0,5
|
8,1
|
86
|
|
12 x 0,5
|
8,7
|
101
|
|
14 x 0,5
|
8,8
|
115
|
|
16 x 0,5
|
9,6
|
130
|
|
18 x 0,5
|
10,2
|
145
|
|
20 x 0,5
|
10,3
|
158
|
|
21 x 0,5
|
10,7
|
170
|
|
27 x 0,5
|
12,4
|
238
|
|
30 x 0,5
|
12,9
|
256
|
|
36 x 0,5
|
14,1
|
315
|
|
40 x 0,5
|
14,9
|
347
|
|
44 x 0,5
|
15,6
|
385
|
|
48 x 0,5
|
16,1
|
408
|
|
52 x 0,5
|
16,8
|
449
|
|
56 x 0,5
|
17,1
|
492
|
|
61 x 0,5
|
17,9
|
537
|
|
2 x 0,75
|
5,5
|
35
|
|
3 x 0,75
|
5,8
|
46
|
|
4 x 0,75
|
6,5
|
58
|
|
5 x 0,75
|
7,0
|
69
|
|
6 x 0,75
|
7,6
|
81
|
|
7 x 0,75
|
8,0
|
93
|
|
8 x 0,75
|
8,7
|
105
|
|
10 x 0,75
|
9,3
|
126
|
|
12 x 0,75
|
10,1
|
149
|
|
14 x 0,75
|
10,2
|
151
|
|
16 x 0,75
|
11,2
|
192
|
|
18 x 0,75
|
11,9
|
223
|
|
20 x 0,75
|
12,1
|
235
|
|
27 x 0,75
|
14,5
|
322
|
|
30 x 0,75
|
15,0
|
354
|
|
36 x 0,75
|
16,2
|
418
|
|
40 x 0,75
|
17,1
|
472
|
|
42 x 0,75
|
17,6
|
499
|
|
44 x 0,75
|
18,1
|
518
|
|
48 x 0,75
|
18,9
|
568
|
|
52 x 0,75
|
19,3
|
603
|
|
56 x 0,75
|
19,8
|
649
|
|
61 x 0,75
|
20,7
|
697
|
|
2 x 1
|
5,6
|
39
|
|
3 x 1
|
6,0
|
52
|
|
4 x 1
|
6,7
|
68
|
|
5 x 1
|
7,3
|
83
|
|
6 x 1
|
8,0
|
98
|
|
7 x 1
|
8,5
|
114
|
|
10 x 1
|
9,8
|
153
|
|
12 x 1
|
10,6
|
180
|
|
16 x 1
|
11,9
|
239
|
|
20 x 1
|
12,8
|
291
|
|
25 x 1
|
14,7
|
376
|
|
27 x 1
|
15,2
|
401
|
|
30 x 1
|
15,7
|
440
|
|
36 x 1
|
16,8
|
520
|
|
40 x 1
|
17,9
|
582
|
|
2 x 1,5
|
6,5
|
56
|
|
3 x 1,5
|
7,1
|
77
|
|
4 x 1,5
|
7,9
|
99
|
|
5 x 1,5
|
8,6
|
122
|
|
6 x 1,5
|
9,6
|
146
|
|
7 x 1,5
|
10,2
|
169
|
|
10 x 1,5
|
11,5
|
224
|
|
12 x 1,5
|
12,4
|
265
|
|
16 x 1,5
|
14,1
|
350
|
|
20 x 1,5
|
15,2
|
435
|
|
24 x 1,5
|
17,0
|
532
|
