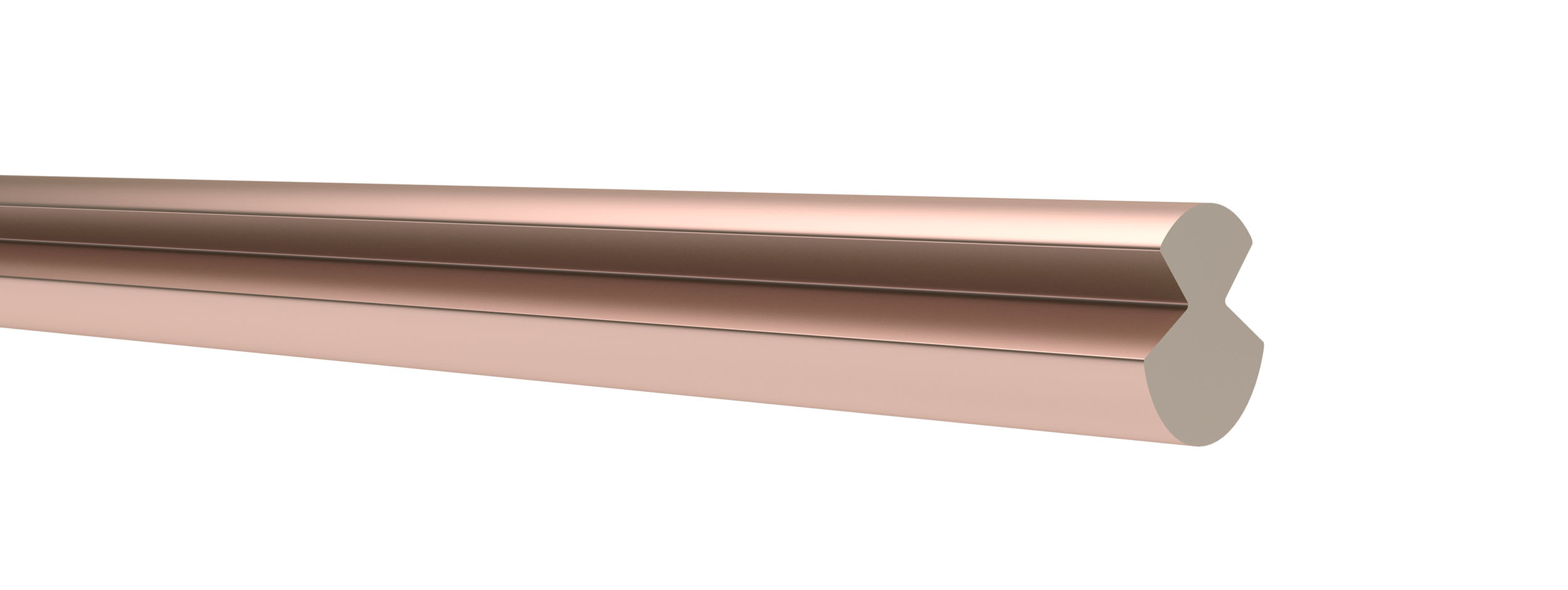

AC 100 (Djp 100)
Profiled overhead copper lines
|
TECHNICAL INFORMATION: |
|||||||||
|
Conductor cross-section |
Dimensions |
Nominal weight of the conductor |
Elongation at break |
Tensile strength |
Conductor resistance at 20°C |
||||
|
mm2 |
A mm |
a mm |
c mm |
r mm |
kg/km |
min |
max |
min |
max |
|
100 |
12,0 |
5,6 |
4,0 |
0,4 |
890 |
3 |
10 |
355 |
0,183 |
|
Packing |
wooden drums of 12T type |
||||||||
|

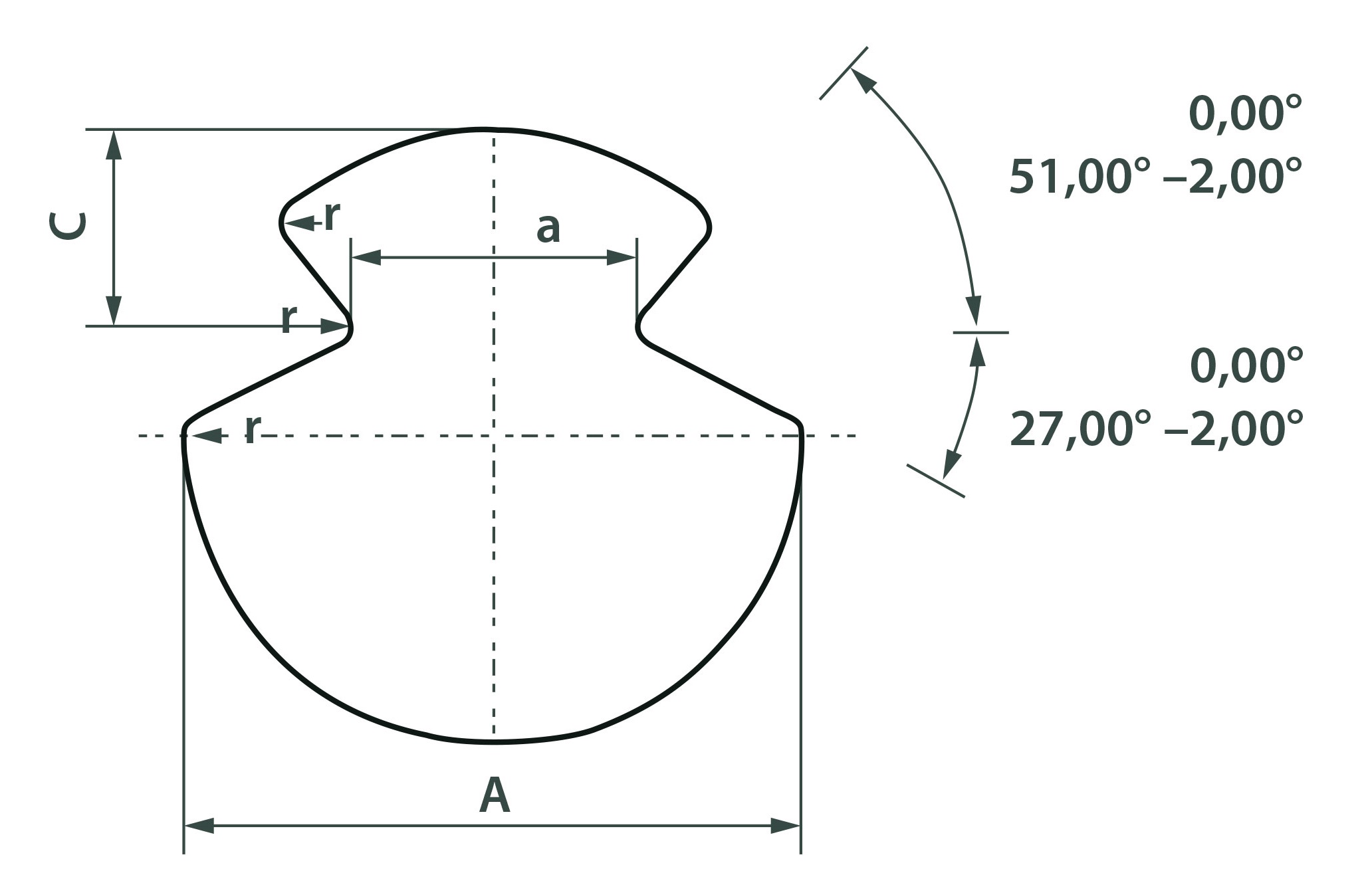

DRAWING OF AC CONDUCTOR |
|---|
 |
Warianty / Variants (1)
| ID | Wariant | Symbol | |
|---|---|---|---|
| 2301 | AC 100 (Djp 100) | AC 100 (Djp 100) |
